2L/2L-A

2-jaw | Extra Long jaw stroke
https://www.autogrip-machinery.com/web/image/product.template/63/image_1920?unique=760cf40

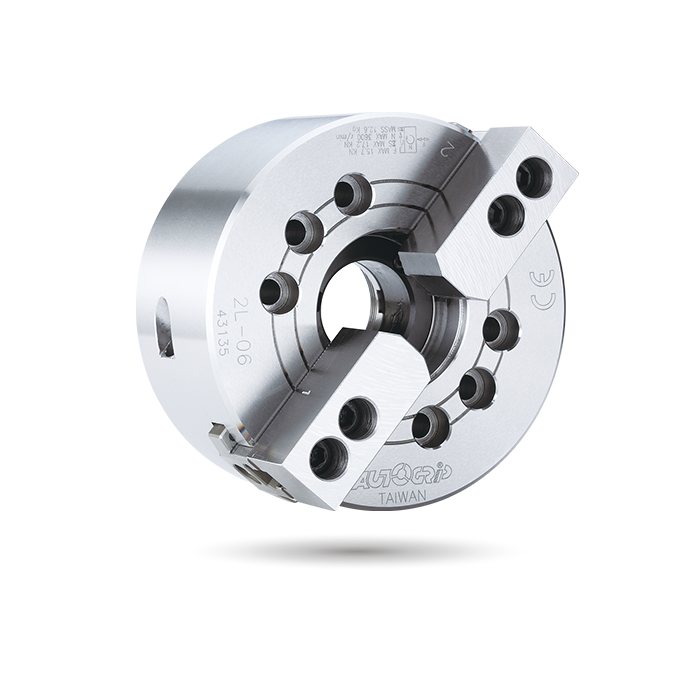

CRANK type Extra Long Stroke Thru-Hole 2-Jaw Power Chuck

Thru-Hole | 2-JAW
    • CRANK type 2-jaw with the large through-hole, and extra long jaw stroke.
    • Matching surfaces of all parts hardened, ground and lubricated directly.
    • High rigidity and high repeatability precision.

J is the hole diameter of the blank draw nut.

K is the maximum thread specification, and it could be customized.

Catalog Download

This combination does not exist.



Specifications

Model-Thru-hole
(mm)
Plunger
stroke
(mm)
Jaw stroke
(Dia.)
(mm)
Chucking
Dia. Max.
(mm)
Chucking
Dia. Min.
(mm)
Max. D.B.
pull kN
(kgf)
Max.
clamping
force kN
(kgf)
Max. speed
min-1 (r.p.m.)
I
kg‧m 2
Weight
(kg)
Weight
(kg)
Matching cyl.Max. pressure
MPa (kgf/cm2)
2L-205 A43212181386 10.4
(1060)
11.4
(1170)
42000.0186.9 7.7TK-A5331.5(15)
2L-206A5451524170 2415.7
(1600)
17.3
(1760)
36000.06314.4 15.6TK-C6461.8(18)
2L-208A5522032 2153022.9
(2330)
27.1
(2760)
3000 0.1732226TK-A8531.9(19)
2L-208A652 20322153022.9
(2330)
27.1
(2760)
30000.1732224.2 TK-A8531.9(19)
2L-210A6 752537.52605331.8
(3250)
37.3
(3800)
24000.334045.5 TK-A10752.1(21)
2L-210A8 752537.52605331.8
(3250)
37.3
(3800)
24000.334044TK-A10752.1(21)
2L-12A89130 453043043.1
(4400)
50.0
(5100)
2100 0.86065.5TK-A12912.0(20)
2L-15A812035 523852656.2
(5730)
53.0
(5400)
1600 2.52133147TK-A1512-351.8(18)
2L-15A11120 35 523852656.2
(5730)
53.0
(5400)
1600 2.52133140 TK-A1512-35
1.8(18)

*The 2L-A's dimensions and specifications are shown in the orange data .

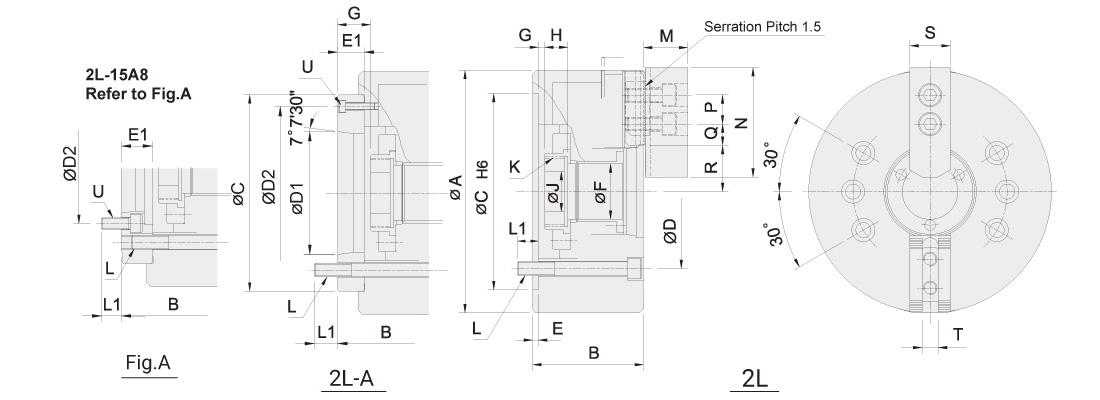

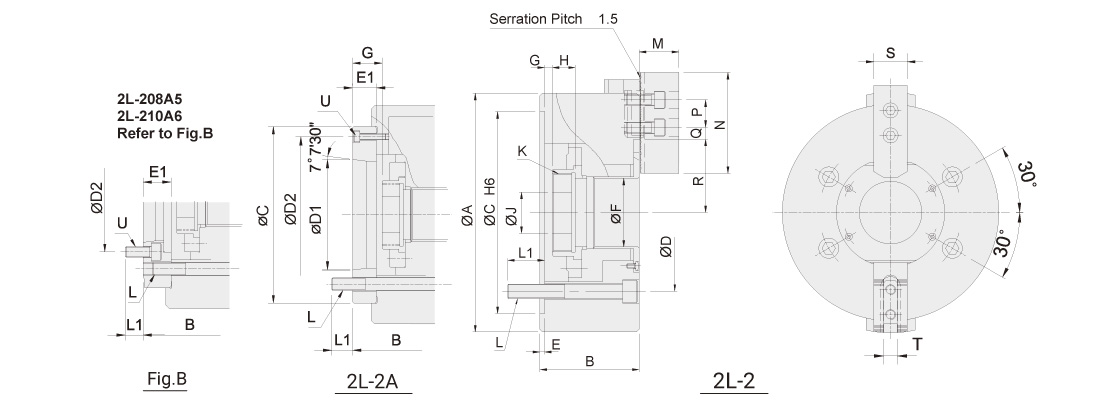

Dimensions

* Subject to technical changes.

MODEL - A B B C D D1 D2 E E1 F G max. G max. G min. G min. H J K L L1 L1 M N P Q max. Q min. R max. R min. S T U
2L-205 A4 138 65 76 110 82.6 63.51 96 4 15 32 1 15 -11 3 20 12 M40x1.5 4~M10 15 15 31 62 14 15.75 5.25 38.5 29.5 25 10 3~M6
2L-206 A5 170 84 97 140 104.8 82.56 116 5 18 45 6.5 24.5 -8.5 9.5 19 20 M55x2 4~M10 18 15 37 73 20 15.25 7.75 51 39 31 12 3~M6
2L-208 A5 215 96 114 170 133.4 82.56 104.8 5 23 52 7 30 -13 10 20 30 M60x2 4~M12 18 19 38 95 25 19.25 10.25 63.5 47.5 35 14 6~M10
2L-208 A6 215 96 114 170 133.4 106.38 150 5 23 52 7 30 -13 10 20 30 M60x2 4~M12 18 20 38 95 25 19.25 10.25 63.5 47.5 35 14 3~M6
2L-210 A6 260 108 128 220 171.4 106.38 133.4 5 25 75 8.5 33 -16.5 8 25 45 M85x2 | M60x2 4~M16
24
20
43 110 30 24.75 11.25 80 61.25 40 16 6~M12
2L-210 A8 260 108 121 220 171.4 139.72 190 5 18 75 8.5 26.5 -16.5 1.5 25 45 M85x2 4~M16 24 21 43 110 30 24.75 11.25 80 61.25 40 16 3~M8
2L-12 A8 304 127 140 220 171.4 139.72 190 5 18 91 15 33 -15 3 28 50 M100x2 6~M16 22 19 51 130 30 46.25 19.25 77 54.5 50 21 or 18 3~M8
2L-15 A8 385 150 177 300 235 139.72 171.4 6 33 120 12.5 45.5 -22.5 10.5 39 60 M130x2 6~M20 33 27.5 63 165 43 51.25 27.25 94.25 68.25 62 25.5 or 22 6~M16
2L-15 A11 385 150 166 300 235 196.87 260 6 22 120 12.5 34.5 -22.5 -0.5 39 60 M130x2 6~M20 33 31 63 165 43 51.25 27.25 94.25 68.25 62 25.5 or 22 3~M10

*The 2L-A's dimensions and specifications are shown in the orange data .
