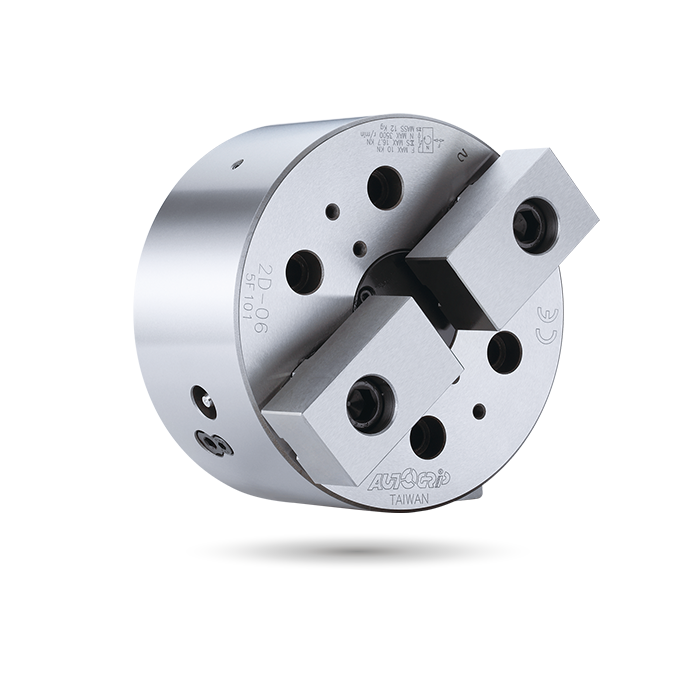

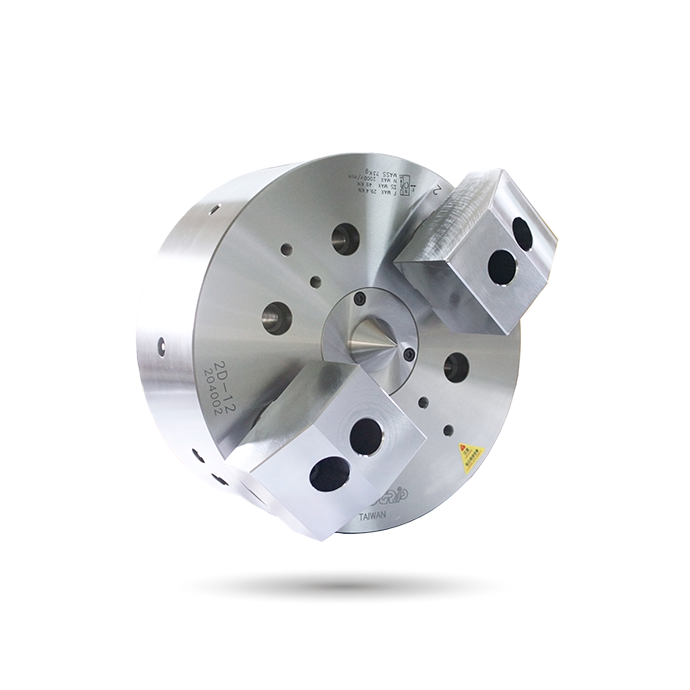

2D

Pull Down | 2-JAW

Pull Down Power Chuck

Non-Thru-Hole | 2-JAW

Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck.
Almost no workpiece uplifting displacement.
The pull down chuck's body and the cylinder pull-down mechanism are heat-treated and fine boring, which guarantees the clamping precision and durableness.

The airtight pressure detection function is optional.

Catalog Download

Specifications

Model	Plunger stroke (mm)	Jaw stroke (Dia.) (mm)	Chucking Dia. Max. (mm)	Chucking Dia. Min. (mm)	Max. D.B. pull kN (kgf)	Max. clamping force kN (kgf)	Max. speed min^-1 (r.p.m.)	I kg‧m ²	Weight (kg)	Matching cyl.	Max. pressure MPa (kgf/cm²)
2D-06	10	7.2	165	22	10.0 (1020)	16.7 (1700)	3500	0.045	12	RK-100	1.4(14.3)
2D-08	10	7.2	210	28	16.7 (1700)	30.0 (3060)	3500	0.13	23	RK-125	1.5(15)
2D-10	15	10.8	254	35	23.3 (2379)	40.0 (4079)	2500	0.34	43	RK-125	2.1(21.1)

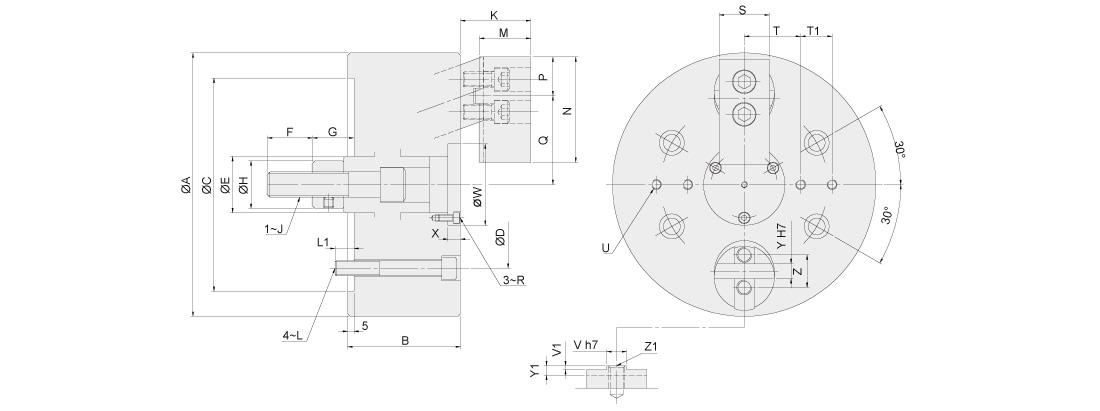

Dimensions

Model	A	B	C(H6)	D	E	F	G max.	G min.	H	J	K max.	K Min.	L	L1	M	N	P	Q max.	Q min.	R	S	T	T1	U	V(h7)	V1	W	X	Y(H7)	Y1	Z	Z1
2D-06	165	85	140	104.8	35	36	37	27	32	M16	45	35	M10	16	31	70	27	57.7	54.3	M4	35	35	20	4~M6	10	2.5	52	7	10	6.5	-	M14
2D-08	210	90	170	133.4	45	36	38	28	38	M20	56	46	M12	15	41	84	31	70.8	67.2	M5	40	45	25	4~M8	16	3	65	10	12	7.5	26	M12
2D-10	254	110	220	171.4	55	46	47	32	50	M24	65	50	M16	24	46	100	38	85	79.6	M6	50	55	30	4~M8	18	3	75	12	15	7.5	32	M14

Download

Model	2D pdf	2D dwg	3D step
2D-06
2D-08
2D-10
