Double-rod Hydraulic Rotating Cylinder with Safety Device
Non-Thru-Hole | Hydraulic
The main advantage of using a hydraulic rotating cylinder is that it allows for precise and controlled movement in a range of industrial and commercial applications. Because the rotating hydraulic cylinder is powered by pressurized fluid, it can exert a large amount of force while remaining relatively compact in size. Additionally, the use of a rotary actuator allows for rotation in a specific direction, which can be beneficial in certain applications. Other advantages include durability, ease of maintenance, and flexibility in design. Overall, hydraulic rotating cylinders can help improve efficiency, accuracy, and productivity in various industries.

Feature:

  • For short form, lightweight, double rod rotary cylinder.
  • Built-in safety check valves and pressure relief valves.
  • The drain port should be independently connected to the oil tank to avoid back pressure.
ModelEff. piston area cm2
Extend
A
Eff. piston area cm2
Retract
B
Eff. piston area cm2
Extend
A
Eff. piston area cm2
Retract
B
Piston stroke
(mm)
Max. speed
min-1 (r.p.m.)
Max. pressure
MPa (kgf/cm2)
I
kg‧m 2
Moment of inertia
Weight
kg
RD-120 122.7 126.1 116.1 113.1 20 5000 3.0(30) 0.14 11.3
RD-125 122.7 126.1 116.1 113.1 25 5000 3.0(30) 0.15 11.5

* Subject to technical changes.

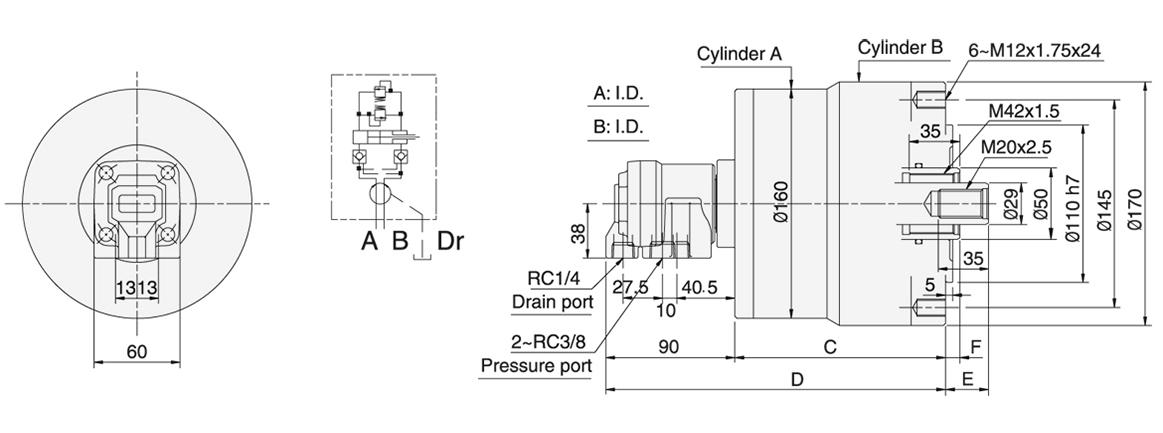

ModelABCDE
max.
E
min.
F
max.
F
min.
RD-12012513013722760403515
RD-12512513014723755303510

Model 2D pdf 2D dwg 3D step
RD-120
RD-125
