规格
| 型号 | 爪行程(直径) (mm) | 最大夹持直径 (mm) | 最大夹持力 kN (kgf) 气压 | Max. clamping force MPa(kgf/cm2) Hydraulic | 夹爪最大高度 (mm) | 重量 (kg) |

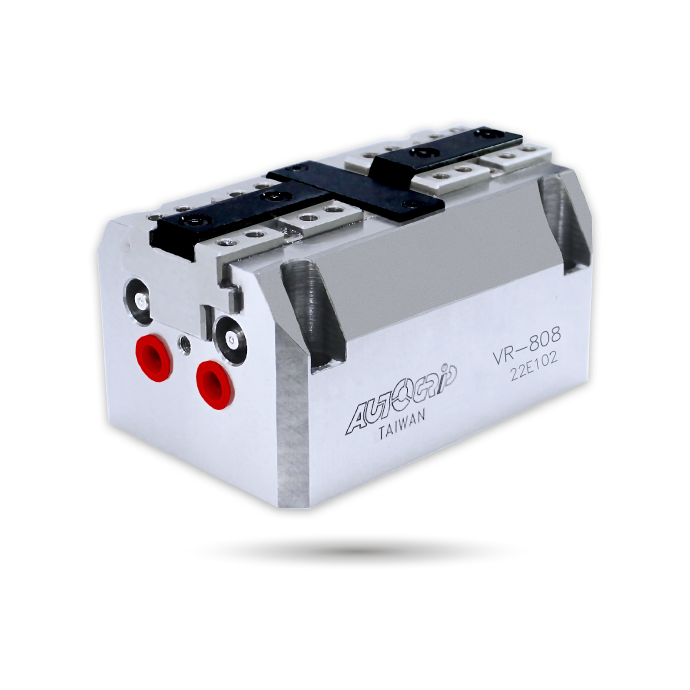

| VRH-808 |
8.8 | 100 | 7.8 (795) | 5.0 (50) | 60 | 3.9 |
| VRH-1012 | 12 | 120 | 15.6 (1590) | 5.0 (50) | 60 | 7.2 |
| VRH-1214 | 14 | 160 | 31.1 (3171) | 6.0 (60) | 60 | 12.1 |
尺寸
* 保留规格修改的权利
| 型号 |
A | B | B1 | C | D | E(h6) | F | G max. | G min. | H | J | J1 | K | K1 | L | M(H7) | M1 | N max. | N min. | P | Q | R | R1 | S | T | T1 | U | U1 | V | W |
| VRH-808 | 120 | 80 | 52 | 64.5 | 36 | 16 | 2 | 26 | 17.2 | 33.5 | 24 | 26.5 | 38 | 41 | M6 | 6 | 2.5 | 34 | 29.6 | 10~M5x0.8 | 6 | 9x4 | 27 | 49 | 95 | 65 | 70 | 65 | 41 | 50 |
| VRH-1012 | 150 | 100 | 64 | 76 | 45 | 20 | 2 | 32 | 20 | 39 | 30 | 32 | 45 | 49 | M8 | 8 | 2.5 | 44 | 38 | 10~M6x1 | 8 | 12x4 | 32 | 63 | 120 | 80 | 90 | 80 | 54 | 63 |
| VRH-1214 | 188 | 125 | 82 | 82.5 | 60 | 24 | 2.5 | 36 | 22 | 41.5 | 36 | 34.5 | 58 | 51 | M8 | 8 | 3 | 60 | 53 | 12~M8x1.25 | 10 | 12x5 | 43 | 80 | 158 | 100 | 128 | 100 | 69 | 78 |
产品应用
動力定心虎鉗 應用
