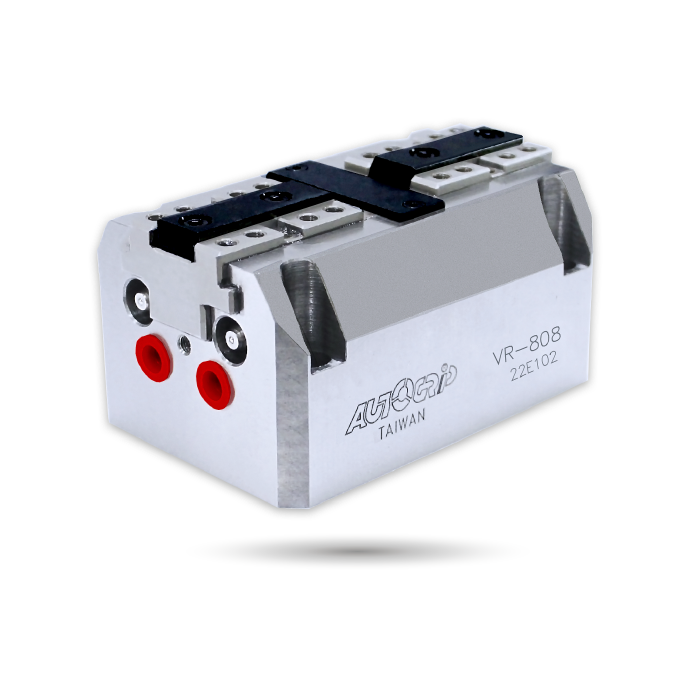

Specifications
| Model | Jaw stroke (mm) | Max.Chucking Dia (mm) | Max. clamping force kN (kgf) Pneumatic | Max. clamping force kN (kgf) Hydraulic | Max. pressure MPa(kgf/cm²) Pneumatic | Max. pressure MPa(kgf/cm²) Hydraulic | Max. jaw height (mm) | Weight (kg) |
| VRA-808 |
8.8 | 100 | 2.2 (224) | 8.1 (830) | 0.9(9) | 2.1(21) | 60 | 3.8 |
| VRA-1012 | 12 | 120 | 4.4 (450) | 13.4 (1370) | 0.9(9) | 2.1(21) | 60 | 7 |
| VRA-1214 | 14 | 160 | 15.0 (1530) | 31.1 (3171) | 0.9(9) | 2.1(21) | 60 | 12 |

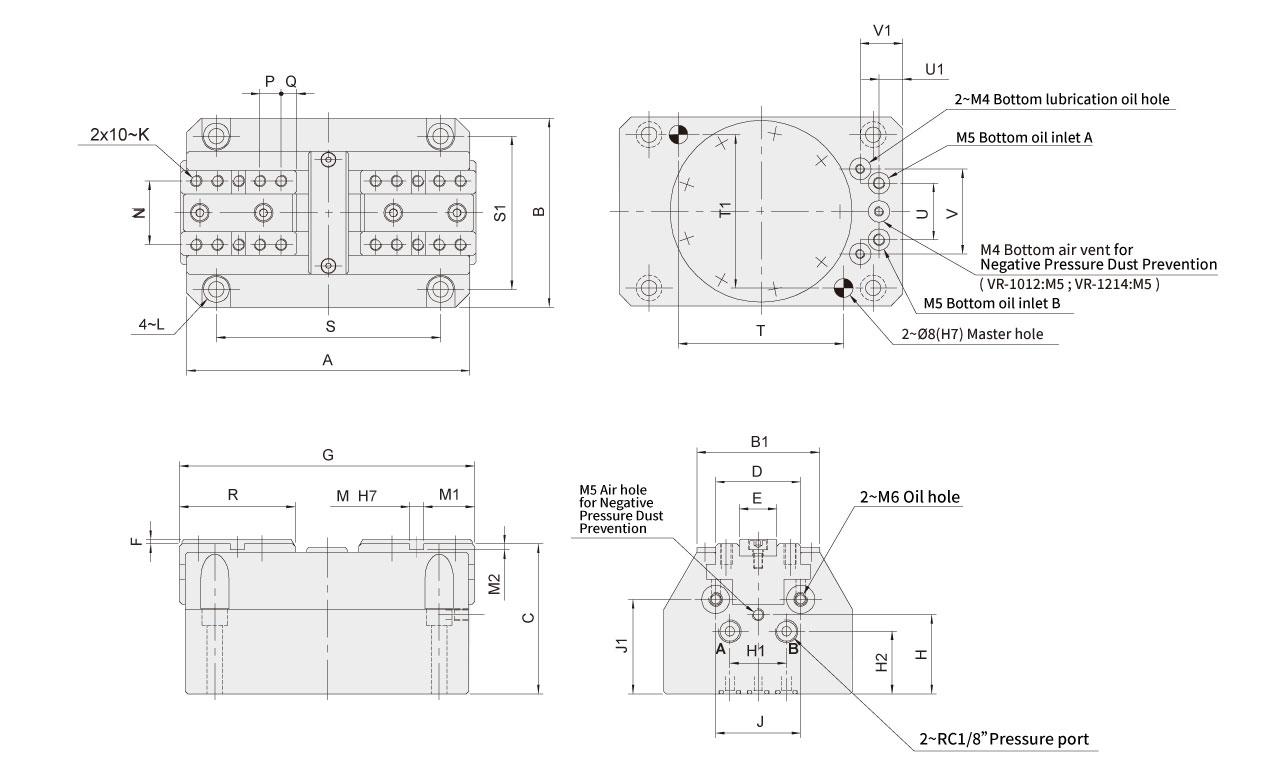

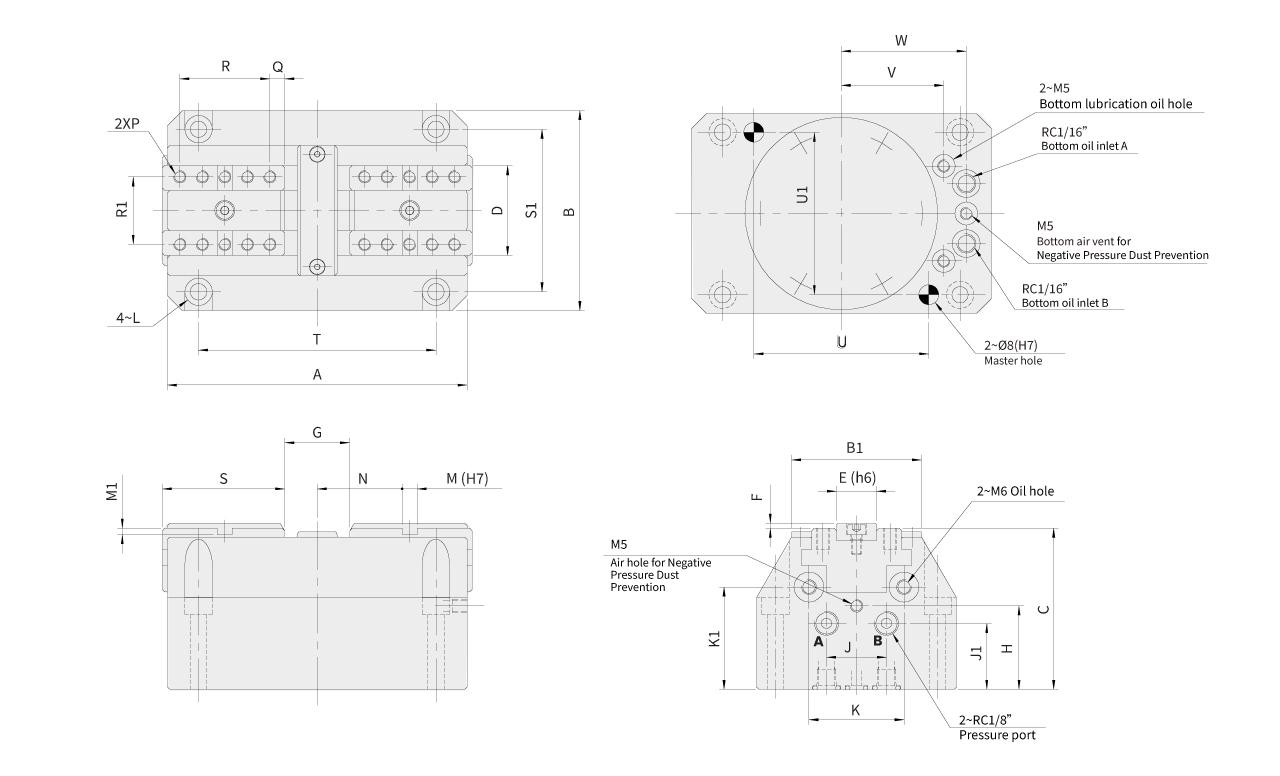

Dimensions
* Subject to technical changes.
| Model |
A | B | B1 | C | D | E(h6) | F | G max. | G min. | H | J | J1 | K | K1 | L | M(H7) | M1 | N max. | N min. | P | Q | R | S | S1 | T | T1 | U | U1 | V | W |
| VRA-808 | 120 | 80 | 52 | 64.5 | 36 | 16 | 2 | 26 | 17.2 | 33.5 | 24 | 26.5 | 38 | 41 | M6 | 6 | 2.5 | 34 | 29.6 | 10~M5x0.8 | 6 | 9x4 | 27 | 49 | 95 | 65 | 70 | 65 | 41 | 50 |
| VRA-1012 | 150 | 100 | 64 | 76 | 45 | 20 | 2 | 32 | 20 | 39 | 30 | 32 | 45 | 49 | M8 | 8 | 2.5 | 44 | 38 | 10~M6x1 | 8 | 12x4 | 32 | 63 | 120 | 80 | 90 | 80 | 54 | 63 |
| VRA-1214 | 188 | 125 | 82 | 82 | 60 | 24 | 2.5 | 36 | 22 | 41.5 | 36 | 34.5 | 58 | 51 | M8 | 8 | 3 | 60 | 53 | 12~M8x1.25 | 10 | 12x5 | 43 | 80 | 158 | 100 | 128 | 100 | 69 | 78 |
Applications

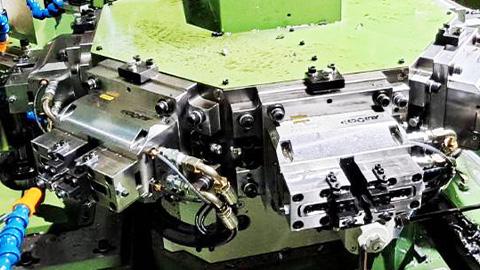

The Power Centering Vise Application!
Durable and precise chucks for machining centers, enhancing performance and ensuring consistent quality and productivity.
High precision chucks for turning centers, ensuring optimal performance and reliability in both small batch and large-scale production.
Customized chucks for special purpose machines, tailored for maximum efficiency and precision, with comprehensive ODM services.
