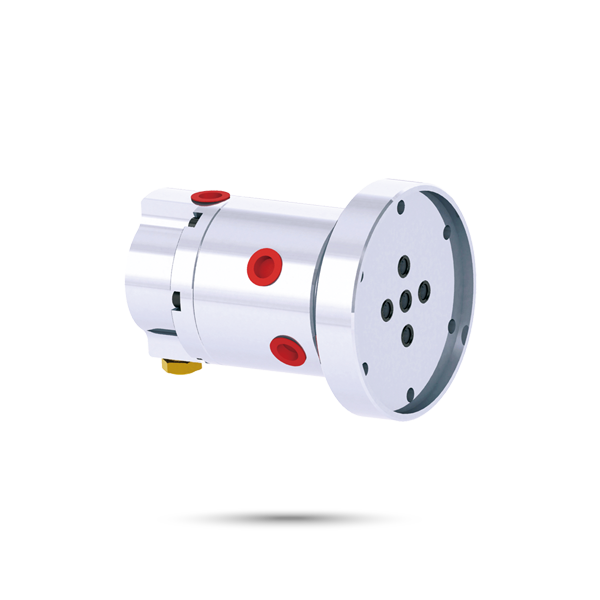

RJ-41HA

Combined Air and Hydraulic Rotary Joint
https://www.autogrip-machinery.com/web/image/product.template/161/image_1920?unique=69f159e

Combined Air and Hydraulic Rotary Joint

4 Oil + 1 air
  • Available Configurations: 5-Channel (4 Hydraulic + 1 Pneumatic).
  • Enables clamping and unclamping control; applicable to workpiece detection, tool air-blow cleaning, and similar automation functions.
  • Ideal for rotary tables on mill-turn machines and multi-axis machining centers.
  • Features high-performance sealing technology to prevent leakage of oil, ensuring long-term operational stability.

Customizable hydraulic circuits, number of passages, and mounting interface; supports various media such as water or hydraulic oil.

Optional integration with optical scales is available for enhanced precision and system synchronization.

Catalog Download

    This combination does not exist.


    Dimensions DownloadRelated Accessories

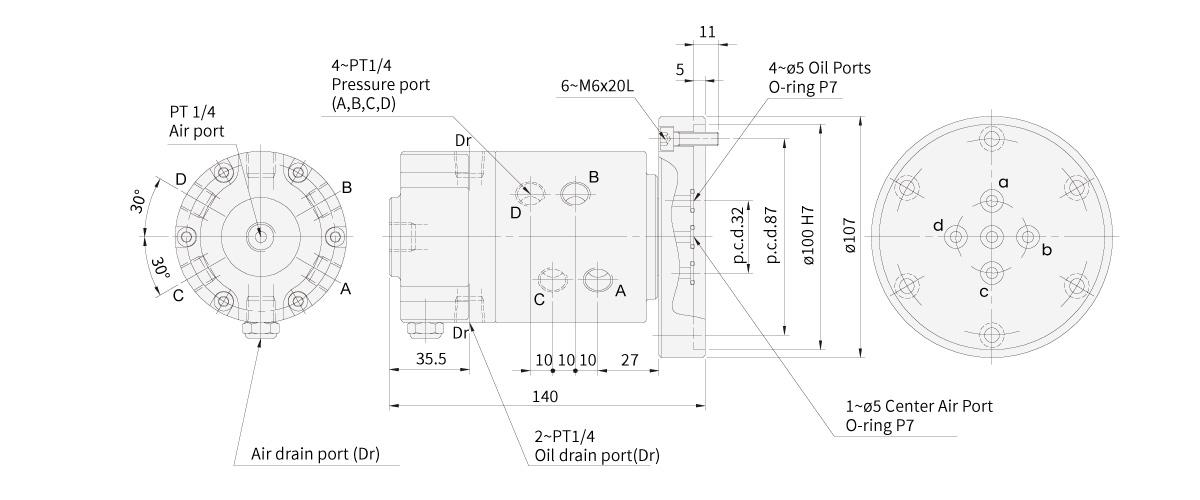

    Dimensions

    * Subject to technical changes.

    Model Distributing
    		Max. speed
    (r.p.m.)
    		Max. pressure MPa(kgf/cm2)
    Pneumatic
    		 Max. pressure MPa(kgf/cm2)
    Hydraulic
    		Weight
    (kg)
    RJ-41HA
    		4 Oil +1 air
    		3000
    		85010.5



    Download

    Model 2D pdf 2D dwg3D step
    RJ-41HA
